氟塑料高温线
Fluoroplastics High Temperature Cable
本品具有优良的耐腐蚀性能,几乎不溶于任何有机溶剂, 可抗油, 抗强酸, 抗强碱, 强氧化剂等;具有优良的电绝缘性能, 耐高电压, 高频损耗小, 不吸潮,绝缘电阻大;具有优良的不燃、不老化性能, 氧指数≥60, 使用寿命长。广泛应用于航空、冶金、石油、家用电器、照明灯具、电子电器、仪器仪表、电机、工业器械等高温环境。
Fluoroplastics high temperature cable has many excellent performances including corrosion resistance, almost insoluble in any organic solvents, oil-resistant, anti-acid, anti-alkali, anti strong oxidizer, etc.; Besides, it also has many other excellent properties including good electrical insulation, high voltage resistance, low high-frequency loss, moisture resistance, big insulated resistance; what’s more, it also has an excellent non-flammable, non-aging properties, long service life and its oxygen index is no less than 60. It is widely used in environment with high temperature such as aviation, metallurgy, petroleum, household appliances, lighting fixtures, electrical and electronics, instrumentation, electrical, industrial equipment and so no.
Fluoroplastics High Temperature Cable
本品具有优良的耐腐蚀性能,几乎不溶于任何有机溶剂, 可抗油, 抗强酸, 抗强碱, 强氧化剂等;具有优良的电绝缘性能, 耐高电压, 高频损耗小, 不吸潮,绝缘电阻大;具有优良的不燃、不老化性能, 氧指数≥60, 使用寿命长。广泛应用于航空、冶金、石油、家用电器、照明灯具、电子电器、仪器仪表、电机、工业器械等高温环境。
Fluoroplastics high temperature cable has many excellent performances including corrosion resistance, almost insoluble in any organic solvents, oil-resistant, anti-acid, anti-alkali, anti strong oxidizer, etc.; Besides, it also has many other excellent properties including good electrical insulation, high voltage resistance, low high-frequency loss, moisture resistance, big insulated resistance; what’s more, it also has an excellent non-flammable, non-aging properties, long service life and its oxygen index is no less than 60. It is widely used in environment with high temperature such as aviation, metallurgy, petroleum, household appliances, lighting fixtures, electrical and electronics, instrumentation, electrical, industrial equipment and so no.
一、产品执行标准 GJB773A-2000
Executive standard: GJB773A-2000
二、型号
Type
ZHTAF200,ZHTAF250—氟塑料高温线
ZHTAF200,ZHTAF250— Fluoroplastics High Temperature Cable
三、使用特性
Characteristics
1、 额定电压：300V；
Rated voltage: 300V；
2、 额定温度：-55/60℃～+200/250℃；
Rated temperature range: -55/60℃～+200/250℃；
3、 导体：镀银铜丝；
Conductor: silver-plated copper wire;
4、 颜色：红、黄、蓝、白、黑、绿、棕、橙、灰、透明等；
4、 颜色：红、黄、蓝、白、黑、绿、棕、橙、灰、透明等；
Color: red, yellow, blue, white, black, green, palm, orange, grey, transparent etc.
5、 绝缘体：聚全氟乙丙烯（FEP）；可熔性四氟乙烯（PFA）。
5、 绝缘体：聚全氟乙丙烯（FEP）；可熔性四氟乙烯（PFA）。
Insulator: FEP; PFA.
四、性能参数表
Performance parameter
项目 Item | 单位 Unit | 技术指标 Technical Indices | ||||||
20℃时导体直流电阻≤ Conductor DC Resistance at 20℃ | Ω/KM | 截面 Cross -section | 0.75 | 1.0 | 1.5 | 2.5 | 4.0 | 6.0 |
电阻 Resistance | 22.7 | 19.0 | 11.7 | 6.86 | 4.51 | 3.05 | ||
试验电压 Test voltage | V | 3000V不击穿。 Finished cable shall endure 3000v voltage test without puncture. | ||||||
绝缘电阻 Insulated resistance | MΩ | 105 | ||||||

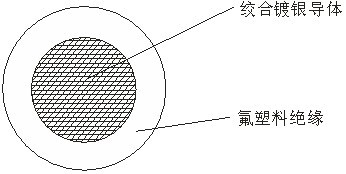

五、电缆示意图
The figure of cable structure
六、注意事项
Notes
施工时严格防止电缆损伤，降低产品性能。
Cable damage and performance reduction are strictly prevented during installation.
七、交货要求
Delivery requirement
允许根据双方协议长度交货；长度误差不超过±5%。
Delivery length of cable depends on both agreements with length error allowance of ±5%
