AFPXR-200PT100热电阻镀银高温连接线
一、AFPXR-200PT100热电阻镀银高温连接线产品执行标准 企标
Executive standard: enterprise standard
二、型号
Type
| 型号 Type | 名称 Name |
| AFPXR200 | 热电阻专用高温屏蔽电线 high temperature cable special for thermal resistance |
三、使用特性
operating characteristics
1、交流额定电压：U0/U 300/300V
A.C. rated voltage: U0/U 300/300V
2、工作温度：电缆导体长期工作温度为200℃。
Long term operating temperature of cable conductor is 200℃.
3、AFPXR-200PT100热电阻镀银高温连接线导体：多股镀银铜丝。
Cable conductor consists of multi-strand silver plated core wire.
4、弯曲半径：电缆弯曲半径不低于电缆外径的6倍。
Bending radius of cable shall be no less than 6 times that of cable outer diameter.
5、阻燃特性：符合GB19666-2005。
Flame resistant characteristic shall meet the requirements speculated in GB19666-2005 standard.
四、技术性能
Performance parameter
| 项目 Item | 单位 Unit | 技术指标 Technical Indices | |||
| 20℃时导体直流电阻≤ Conductor DC Resistance at 20℃ | Ω/KM | 截面 Cross section | 0.2 | 0.3 | 0.5 |
| 电阻 Resistance | 83.5 | 49.5 | 30.2 | ||
| 试验电压 test voltage | V | 1.5KV，5min不击穿。 Finished cable shall endure 1.5kv voltage test for 5 min without puncture. | |||
| 绝缘电阻 Insulated resistance | MΩ | 500 |
AFPXR-200PT100热电阻镀银高温连接线
五、结构尺寸
External dimension
| 型号 type | 规格 Specifications | 参考外径 Reference diameter |
| AFPXR200 | 1*2*0.2 | 1.2*2.8 |
| AFPXR200 | 1*2*0.3 | 1.3*3.2 |
| AFPXR200 | 1*2*0.5 | 1.6*3.8 |
| AFPXR200 | 1*3*0.2 | 3.1 |
| AFPXR200 | 1*3*0.3 | 3.4 |
| AFPXR200 | 1*3*0.5 | 4.0 |

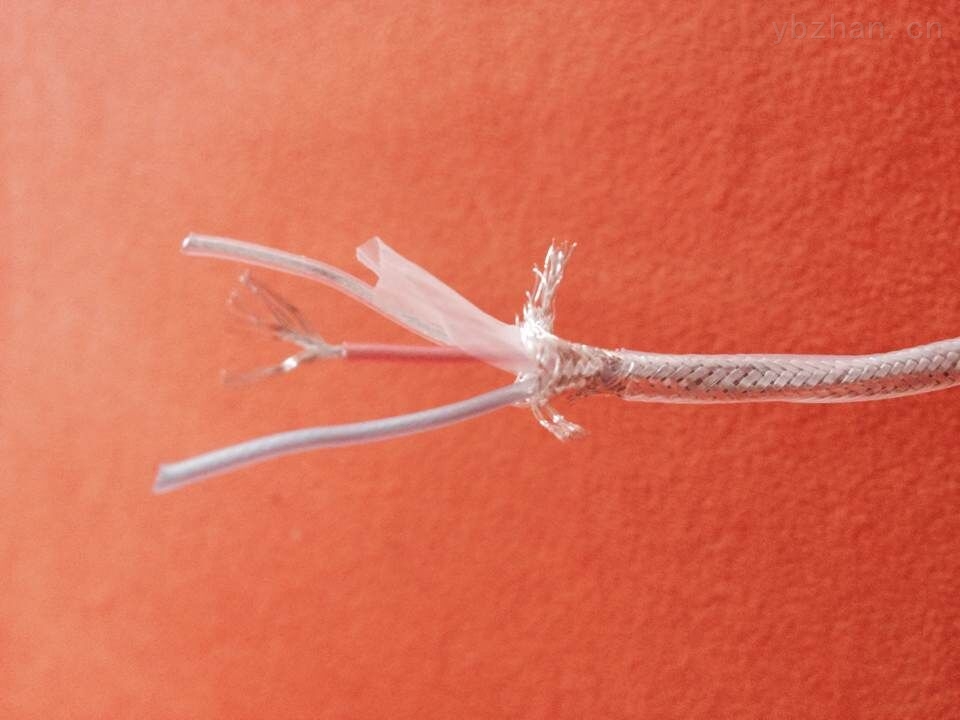

六、AFPXR-200PT100热电阻镀银高温连接线电缆示意图
The figure of cable structure
七、注意事项
Notes
施工时严格防止电缆损伤，降低产品性能。
Cable damage and performance reduction are strictly prevented during installation.
八、交货要求
Delivery requirement
允许根据双方协议长度交货；长度误差不超过±5%。
Delivery length of cable depends on both agreements with length error allowance of ±5%.
