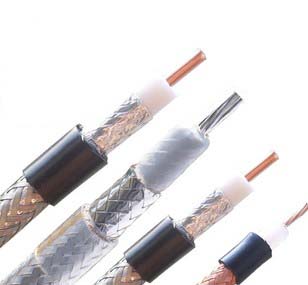

RG 同轴电缆生产厂家
RG产品说明
执行标准： 产品符合美国规范MIL-C-17F中相关的规定。
环境温度： -40℃～70℃。
使用频率： 3GHz以下。
应用领域： 适用于无线电通信和采用类似技术的电子装置中作高频传输线。如机器内部连接以及数字配架线之间的传输。
RG技术参数
型 号 | RG-UL | 导 体 | 绝缘 | 编 织 | 护套 | 阻抗 | 电容 | 衰减 | |||||
根数／ | 材料 | 直径 | 材料 | 层 | 第二层 | 材 | 直径 | 材料 | |||||
股×根/直径(mm) | |||||||||||||
RG-5/U | - | 1/1.29 | BC | 4.7 | LDPE | 16×9/0.16 | 24×8/0.16 | BC | 8.4±0.20 | PVC | 52.5 | 93.5 | 85 |
RG-6/U | 1354 | 1/1.024 | CCS | 4.57 | LDPE | 16×9/0.16 | 16×8/0.16 | TC | 7.4±0.20 | PVC | 75 | 56.8 | 69 |
RG-7/U | - | 1/0.914 | BC | 6.35 | LDPE | 24×7/0.16 | - | BC | 9.4±0.20 | PVC | 94.5 | 41.0 | 66 |
RG-8/U | 1354 | 7/0.724 | BC | 7.24 | LDPE | 24×8/0.8 | - | BC | 10.3±0.2 | PVC | 52 | 96.8 | 69 |
RG-8A/U | 1354 | 7/0.724 | BC | 7.24 | LDPE | 24×8/0.18 | - | BC | 10.3±0.2 | NC-PVC | 52 | 96.8 | 69 |
RG-11/U | 1354 | 7/0.404 | TC | 7.24 | LDPE | 24×8/0.18 | - | BC | 10.3±0.2 | PVC | 75 | 67.3 | 76 |
RG-11A/U | 1354 | 7/0.404 | TC | 7.24 | LDPE | 24×8/0.18 | - | BC | 10.3±0.2 | NC-PVC | 75 | 67.3 | 76 |
RG-13/U | 1354 | 7/0.404 | TC | 7.11 | LDPE | 24×9/0.16 | 24×8/0.16 | BC | 10.7±0.2 | PVC | 74 | 67.3 | 76 |
RG-13A/U | 1354 | 7/0.404 | TC | 7.11 | LDPE | 24×9/0.16 | 24×8/0.16 | BC | 10.7±0.2 | NC-PVC | 74 | 67.3 | 76 |
RG-14/U | - | 1/2.59 | BC | 9.40 | LDPE | 24×10/0.18 | 24×8/0.18 | BC | 13.8±0.2 | PVC | 52 | 96.8 | 46 |
RG-14A/U | - | 1/2.59 | BC | 9.40 | LDPE | 24×10/0.18 | 24×8/0.18 | TC | 13.8±0.2 | NC-PVC | 52 | 96.8 | 46 |
RG-15/U | - | 1/1.45 | CCS | 9.40 | LDPE | 24×10/0.18 | 24×8/0.18 | BC | 13.8±0.2 | PVC | 76 | 65.6 | 49 |
RG-29/U | 1354 | 1/0.813 | BC | 2.95 | LDPE | 16×7/0.127 | - | BC | 4.7±0.15 | PE | 53.5 | 93.5 | 138 |
RG-34/U | - | 7/0.724 | BC | 11.6 | LDPE | 24×9/0.16 | - | BC | 15.9±0.25 | PVC | 71 | 70.5 | 46 |
RG-34B/U | - | 7/0.632 | BC | 11.7 | LDPE | 24×10/0.18 | - | BC | 16.0±0.25 | NC-PVC | 75 | 67.0 | 48 |
RG-54/VU | - | 7/0.386 | BC | 4.52 | LDPE | 16×9/0.16 | - | BC | 6.1±0.15 | PE | 58 | 85.8 | 187 |
RG-55/U | - | 1/0.813 | BC | 2.90 | LDPE | 16×7/0.127 | 16×8/0.127 | BC | 5.0±0.15 | PE | 50.5 | 93.6 | 138 |
RG-58/U | 1354 | 1/0.813 | BC | 2.95 | LDPE | 16×8/0.127 | - | TC | 4.95±0.15 | PVC | 53.5 | 90.5 | 133 |
RG-58A/U | 1354 | 19/0.18 | TC | 2.95 | LDPE | 16×8/0.127 | - | TC | 4.95±0.15 | PVC | 50 | 93.5 | 174 |
RG-58C/U | 1354 | 19/0.18 | TC | 2.95 | LDPE | 16×8/0.127 | - | TC | 4.95±0.15 | NC-PVC | 50 | 93.5 | 174 |
RG-59/U | 1354 | 1/0.643 | CCS | 3.71 | LDPE | 16×7/0.16 | - | BC | 6.15±0.15 | PVC | 73 | 68.9 | 125 |
RG-59A/U | 1354 | 1/0.643 | CCS | 3.71 | LDPE | 16×7/0.16 | - | TC | 6.15±0.15 | NC-PVC | 73 | 68.9 | 125 |
RG-59B/U | - | 1/0.584 | CCS | 3.71 | LDPE | 16×7/0.16 | - | BC | 6.15±0.15 | NC-PVC | 93 | 68.9 | 112 |
RG-62/U | 1354 | 1/0.643 | CCS | 3.71 | LDPE | 16×7/0.16 | - | BC | 6.15±0.15 | PVC | 93 | 44.3 | 102 |
RG-62A/U | - | 1/0.613 | CCS | 3.71 | LDPE | 16×7/0.16 | - | BC | 6.15±0.15 | NC-PVC | 125 | 32.8 | 66 |
RG-63/U | - | 1/0.643 | CCS | 7.24 | LDPE | 24×8/0.18 | - | BC | 10.3±0.2 | PVC | 125 | 32.8 | 66 |
RG-63B/U | - | 1/0.643 | CCS | 7.24 | LDPE | 24×8/0.18 | - | BC | 10.3±0.2 | NC-PVC | 125 | 32.8 | 66 |
RG-71/U | 1354 | 1/0.643 | CCS | 3.71 | LDPE | 16×7/0.16 | 16×8/0.127 | BC | 6.4±0.15 | PVC | 93 | 44.3 | 102 |
RG-89/U | - | 1/0.643 | CCS | 7.24 | LDPE | 16×12/0.18 | - | BC | 16.0±0.25 | PVC | 125 | 32.8 | 66 |
RG-122/U | 1354 | 27/0.13 | TC | 2.44 | LDPE | 16×6/0.127 | - | BC | 4.06±0.15 | NC-PVC | 50 | 105 | 195 |
RG-133A/U | - | 1/0.645 | BC | 7.2 | LDPE | 24×8/0.18 | - | BC | 10.3±0.2 | NC-PVC | 95 | 53 | 76 |
RG-174/U | 1354 | 7/0.16 | CCS | 1.52 | LDPE | 16×5/0.10 | - | TC | 2.54±0.15 | NC-PVC | 50 | 110 | 259 |
RG-213/U | - | 7/0.752 | BC | 7.24 | LDPE | 24×8/0.18 | - | BC | 10.3±0.2 | NC-PVC | 50 | 100 | 69 |
RG-216/U | - | 7/0.404 | TC | 7.24 | LDPE | 24×9/0.16 | 24×8/0.16 | BC | 10.8±0.2 | NC-PVC | 75 | 67 | 88 |
RG-217/U | - | 1/2.69 | BC | 9.4 | LDPE | 24×10/0.18 | 24×8/0.18 | BC | 13.8±0.2 | NC-PVC | 50 | 100 | 50 |
