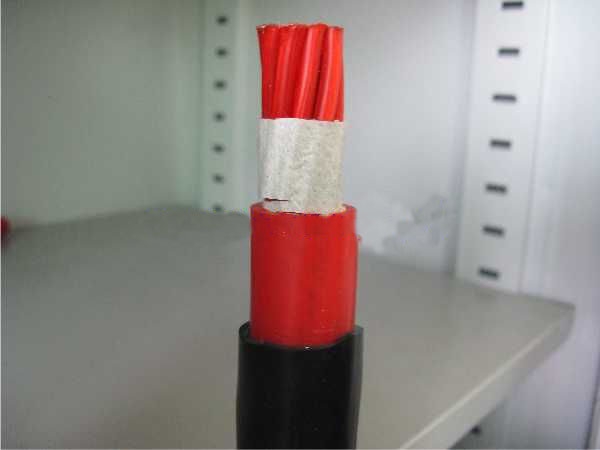

YGZF YGZPF 铁氟龙高温电线生产厂家
产品型号：YGZPF YGZF
执行标准：Q/IRMV3－2008
产品特性：
1、额定电压：300/500V
2、工作温度：-60～+200℃
3、导 体：绞合镀锡铜线
4、绝 缘：FEP 铁氟龙
5、护 套：硅橡胶
6、颜 色：红/黄/兰/白/黑/黄绿/棕/绿等
特点/用途：
在长期潮湿环境中使用，电性能及防水、防霉性能优越。弯曲性能优良，小弯曲半径为电缆外径16倍，可移动使用。
使用于交流额定电压450/750V及以下各种移动式电机、钢铁、航空、电厂、石化等高温环境中使用。
交货要求：
按双方合同协议商定，允许不小于10米的短段交货。其数量应不超过交货总长度的10%。
规格结构及技术参数：
芯数×截面 | 导体结构 | 绝缘厚度 | 绝缘外径 | 护套厚度 | 平均外径 | 20 ℃时导体直流电阻 |
1×0.4 | 48/0.10 | 0.50 | 1.80 | 0.80 | 4.0 | 53.1 |
1×0.75 | 19/0.23 | 0.60 | 2.35 | 0.65 | 4.10 | 24.6 |
1×1.5 | 19/0.32 | 0.60 | 2.80 | 1.20 | 5.80 | 12.7 |
3×0.08 | 7/0.12 | 0.20 | 0.76 | 0.70 | 3.40 | 245 |
4×0.08 | 7/0.12 | 0.20 | 0.76 | 0.80 | 4.0 | 245 |
5×0.08 | 7/0.12 | 0.20 | 0.76 | 0.80 | 4.20 | 245 |
6×0.08 | 7/0.12 | 0.20 | 0.76 | 1.10 | 5.20 | 245 |
2×0.12 | 7/0.15 | 0.25 | 0.95 | 0.70 | 3.90 | 163 |
3×0.12 | 7/0.15 | 0.25 | 0.95 | 0.70 | 4.0 | 163 |
4×0.15 | 7/0.15 | 0.25 | 0.95 | 1.0 | 4.80 | 163 |
5×0.12 | 7/0.15 | 0.25 | 0.95 | 0.90 | 4.90 | 163 |
6×0.12 | 7/0.15 | 0.25 | 0.95 | 1.0 | 5.40 | 163 |
7×0.12 | 7/0.15 | 0.25 | 0.95 | 1.0 | 5.50 | 163 |
2×0.2 | 7/0.20 | 0.25 | 1.10 | 0.80 | 4.30 | 90.4 |
3×0.2 | 7/0.20 | 0.25 | 1.10 | 0.80 | 4.50 | 90.4 |
4×0.2 | 7/0.20 | 0.25 | 1.10 | 1.0 | 5.20 | 90.4 |
5×0.2 | 7/0.20 | 0.25 | 1.10 | 1.0 | 5.50 | 90.4 |
6×0.2 | 7/0.20 | 0.25 | 1.10 | 1.2 | 6.20 | 90.4 |
7×0.2 | 7/0.20 | 0.25 | 1.10 | 1.2 | 6.20 | 90.4 |
8×0.2 | 7/0.20 | 0.25 | 1.10 | 1.2 | 6.50 | 90.4 |
10×0.2 | 7/0.20 | 0.25 | 1.10 | 1.40 | 7.60 | 90.4 |
16×0.2 | 7/0.20 | 0.25 | 1.10 | 1.50 | 8.60 | 90.4 |
19×0.2 | 7/0.20 | 0.25 | 1.10 | 1.50 | 9.0 | 90.4 |
2×0.35 | 19/0.16 | 0.25 | 1.30 | 1.0 | 5.0 | 53.1 |
3*0.35 | 19/0.16 | 0.25 | 1.30 | 1.0 | 5.40 | 53.1 |
4×0.35 | 19/0.16 | 0.25 | 1.30 | 1.20 | 6.20 | 53.1 |
5×0.35 | 19/0.16 | 0.25 | 1.30 | 1.20 | 6.50 | 53.1 |
6×0.35 | 19/0.16 | 0.25 | 1.30 | 1.20 | 7.0 | 53.1 |
7×0.35 | 19/0.16 | 0.25 | 1.30 | 1.20 | 7.0 | 53.1 |
8×0.35 | 19/0.16 | 0.25 | 1.30 | 1.40 | 7.80 | 53.1 |
2×0.5 | 19/0.18 | 0.25 | 1.40 | 1.0 | 5.20 | 40.1 |
3×0.5 | 19/0.18 | 0.25 | 1.40 | 1.0 | 5.50 | 40.1 |
4×0.5 | 19/0.18 | 0.25 | 1.40 | 1.10 | 6.10 | 40.1 |
5×0.5 | 19/0.18 | 0.25 | 1.40 | 1.20 | 6.80 | 40.1 |
6×0.5 | 19/0.18 | 0.25 | 1.40 | 1.30 | 7.20 | 40.1 |
7×0.5 | 19/0.18 | 0.25 | 1.40 | 1.30 | 7.40 | 40.1 |
2×0.75 | 19/0.23 | 0.25 | 1.70 | 1.20 | 6.30 | 24.6 |
3×0.75 | 19/0.23 | 0.25 | 1.70 | 1.40 | 7.0 | 24.6 |
4×0.75 | 19/0.23 | 0.25 | 1.70 | 1.60 | 8.0 | 24.6 |
5×0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 8.20 | 24.6 |
6×0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 8.60 | 24.6 |
7×0.75 | 19/0.23 | 0.25 | 1.70 | 1.60 | 8.80 | 24.6 |
2×1 | 19/0.26 | 0.25 | 1.80 | 1.20 | 6.60 | 20.4 |
3×1 | 19/0.26 | 0.25 | 1.80 | 1.40 | 7.30 | 20.4 |
4×1 | 19/0.26 | 0.25 | 1.80 | 1.40 | 7.80 | 20.4 |
7×1 | 19/0.26 | 0.25 | 1.80 | 1.60 | 8.60 | 20.4 |
2×1.5 | 19/0.32 | 0.30 | 2.25 | 1.30 | 7.70 | 12.7 |
3×1.5 | 19/0.32 | 0.30 | 2.25 | 1.40 | 8.20 | 12.7 |
4×1.5 | 19/0.32 | 0.30 | 2.25 | 1.40 | 8.50 | 12.7 |
7×1.5 | 19/0.32 | 0.30 | 2.25 | 1.60 | 10.50 | 12.7 |
2×2.5 | 19/0.41 | 0.40 | 2.80 | 1.50 | 9.20 | 7.43 |
3×2.5 | 19/0.41 | 0.40 | 2.80 | 1.50 | 9.60 | 7.43 |
4×2.5 | 19/0.41 | 0.40 | 2.80 | 1.60 | 10.60 | 7.43 |
7×2.5 | 19/0.41 | 0.40 | 2.80 | 1.80 | 12.6 | 7.43 |
